This notebook includes the `CmdStanPy` code for the Bayesian Workflow book
Chapter 21 *Posterior predictive checking: Stochastic learning in dogs*.
## Introduction
We analyse stochastic learning in dogs data by
@Bush+Mosteller:1955.
```{python}
#| label: setup
#| include: true
#| cache: false
import sys
import warnings
sys.path.insert(0, "..")
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap
from cmdstanpy import CmdStanModel, disable_logging
from scipy.special import expit
import arviz as az
from utils import print_stan
warnings.filterwarnings("ignore")
disable_logging()
az.style.use("arviz-variat")
az.rcParams["stats.ci_prob"] = 0.95
plt.rcParams["figure.dpi"] = 100
SEED = 123
rng = np.random.default_rng(SEED)
shock_cmap = ListedColormap(["#fac364", "#7c2695"])
```
## Data
```{python}
dogs = pd.read_csv("data/dogs.dat", skiprows=2, sep=r"\s+", header=None)
shock = (dogs.iloc[:, 1:26].values == "S").astype(int)
dogs_data = {"y": shock, "J": shock.shape[0], "T": shock.shape[1]}
```
## Models
```{python}
dogs_0 = CmdStanModel(stan_file="dogs_0.stan")
print_stan(dogs_0)
```
```{python}
#| label: fit_0
#| results: hide
fit_0 = dogs_0.sample(data=dogs_data, seed=SEED, show_progress=False)
```
```{python}
dt_0 = az.from_cmdstanpy(fit_0, posterior_predictive=["y_rep"])
az.summary(dt_0)
```
```{python}
dogs_1 = CmdStanModel(stan_file="dogs_1.stan")
print_stan(dogs_1)
```
```{python}
#| label: fit_1
#| results: hide
fit_1 = dogs_1.sample(data=dogs_data, seed=SEED, show_progress=False)
```
```{python}
dt_1 = az.from_cmdstanpy(fit_1, posterior_predictive=["y_rep"])
az.summary(dt_1)
```
```{python}
dogs_2 = CmdStanModel(stan_file="dogs_2.stan")
print_stan(dogs_2)
```
```{python}
#| label: fit_2
#| results: hide
fit_2 = dogs_2.sample(data=dogs_data, seed=SEED, show_progress=False)
```
```{python}
dt_2 = az.from_cmdstanpy(fit_2, posterior_predictive=["y_rep"])
az.summary(dt_2)
```
```{python}
dogs_3 = CmdStanModel(stan_file="dogs_3.stan")
print_stan(dogs_3)
```
```{python}
#| label: fit_3
#| results: hide
fit_3 = dogs_3.sample(data=dogs_data, seed=SEED, show_progress=False)
```
```{python}
dt_3 = az.from_cmdstanpy(fit_3, posterior_predictive=["y_rep"])
az.summary(dt_3, var_names=["mu_logit_a", "sigma_logit_a"])
```
```{python}
dogs_4 = CmdStanModel(stan_file="dogs_4.stan")
print_stan(dogs_4)
```
```{python}
#| label: fit_4
#| results: hide
fit_4 = dogs_4.sample(data=dogs_data, seed=SEED, show_progress=False)
```
```{python}
dt_4 = az.from_cmdstanpy(fit_4, posterior_predictive=["y_rep"])
az.summary(dt_4, var_names=["mu_logit_ab", "Sigma_logit_ab"])
```
```{python}
dogs_5 = CmdStanModel(stan_file="dogs_5.stan")
print_stan(dogs_5)
```
```{python}
#| label: fit_5
#| results: hide
fit_5 = dogs_5.sample(data=dogs_data, seed=SEED, show_progress=False)
```
```{python}
dt_5 = az.from_cmdstanpy(fit_5, posterior_predictive=["y_rep"])
az.summary(dt_5, var_names=["mu_logit_ab", "sigma_logit_ab", "Omega_logit_ab", "a", "b"])
```
## Plots
```{python}
def empty_plot(ax, label=""):
ax.axis("off")
ax.text(0.5, 0.5, label, ha="center", va="center", transform=ax.transAxes, fontsize=8)
def plot_dogs(ax, y):
J, T = y.shape
max_y_times = np.full(J, -1)
for j in range(J):
shock_times = np.where(y[j] == 1)[0]
if len(shock_times) > 0:
max_y_times[j] = shock_times.max()
order = np.argsort(max_y_times)[::-1]
y_ordered = y[order]
ax.imshow(y_ordered, aspect="auto", cmap=shock_cmap, origin="lower", interpolation="nearest")
ax.set(xticks=[], yticks=[])
def plot_ppc(axes_row, idata, label):
J = dogs_data["J"]
T = dogs_data["T"]
empty_plot(axes_row[0], label)
y_rep = az.extract(idata, group="posterior_predictive", num_samples=6, random_seed=rng)
for ax_i, sample_i in enumerate(y_rep.sample.values):
plot_dogs(axes_row[ax_i + 1], y_rep.sel(sample=sample_i))
```
```{python}

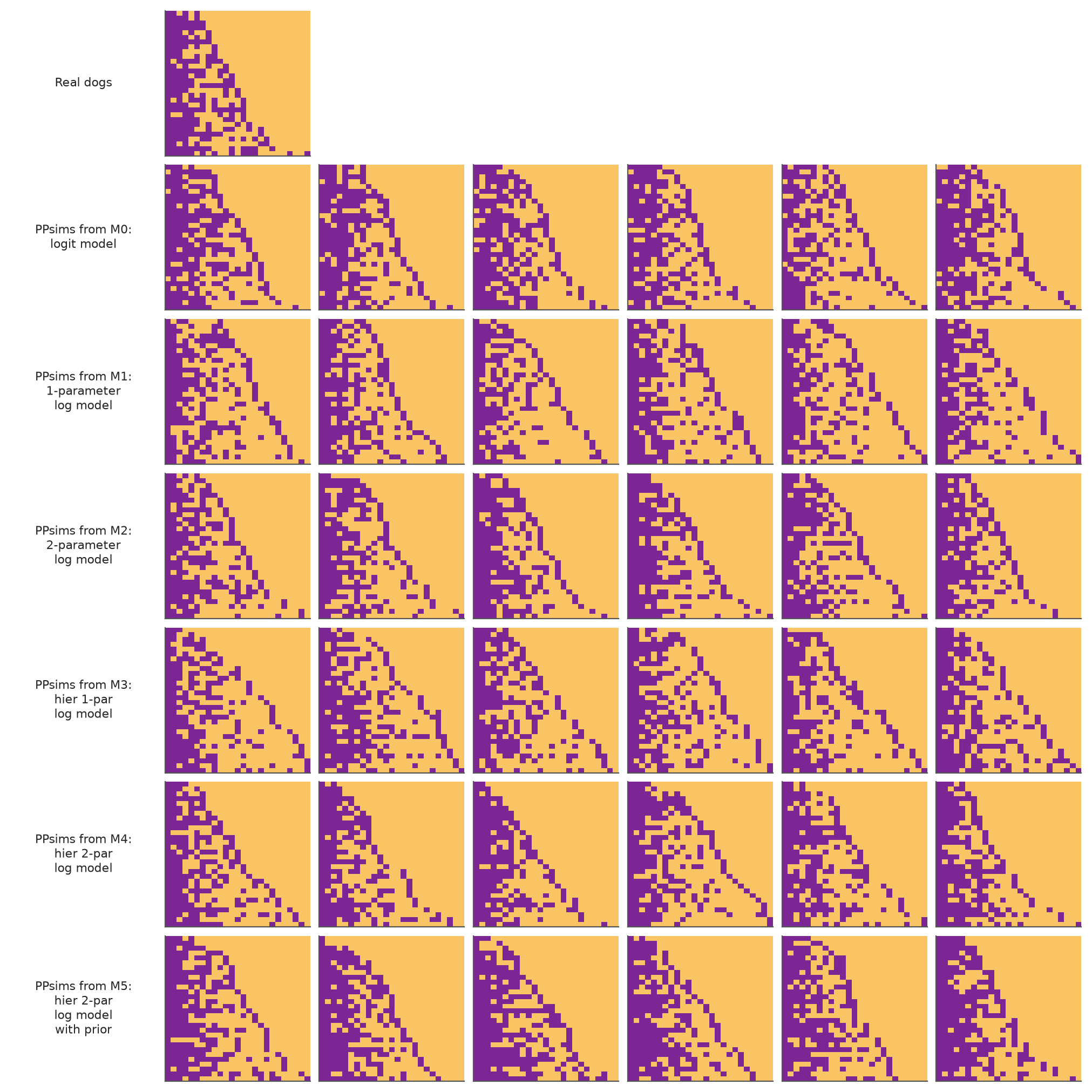

#| label: fig-dogs_ppc
J = dogs_data["J"]
T = dogs_data["T"]
_, axes = plt.subplots(7, 7, figsize=(10, 10))
empty_plot(axes[0, 0], "Real dogs")
plot_dogs(axes[0, 1], shock)
for j in range(2, 7):
empty_plot(axes[0, j])
models = [dt_0, dt_1, dt_2, dt_3, dt_4, dt_5]
labels = [
"PPsims from M0:\nlogit model",
"PPsims from M1:\n1-parameter\nlog model",
"PPsims from M2:\n2-parameter\nlog model",
"PPsims from M3:\nhier 1-par\nlog model",
"PPsims from M4:\nhier 2-par\nlog model",
"PPsims from M5:\nhier 2-par\nlog model\nwith prior",
]
for row, (idata, label) in enumerate(zip(models, labels), start=1):
plot_ppc(axes[row], idata, label)
```
```{python}

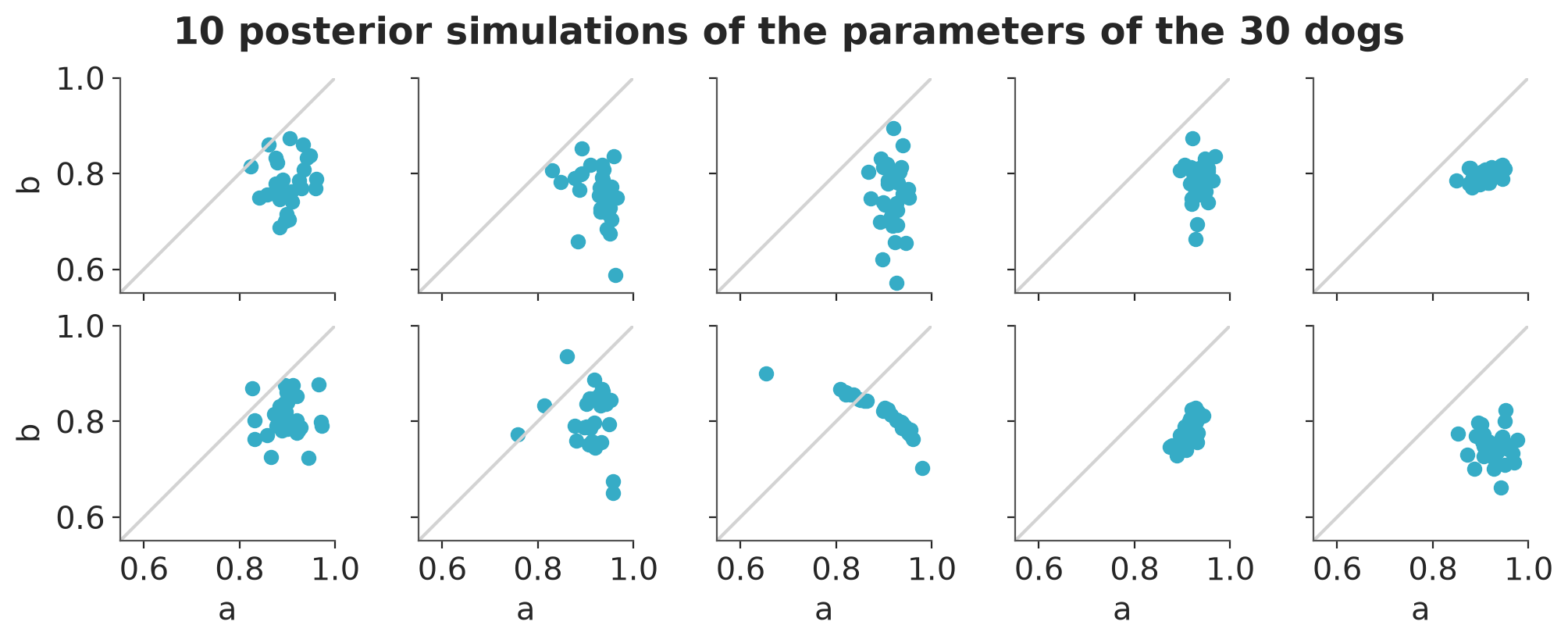

#| label: fig-dogs_inference
fig, axes = plt.subplots(2, 5, figsize=(10, 4), sharex=True, sharey=True)
posterior = az.extract(dt_5, var_names=["a", "b"], num_samples=10, random_seed=SEED)
for ax, sample_i in zip(axes.flatten(), posterior.sample):
a_sim = posterior["a"].sel(sample=sample_i)
b_sim = posterior["b"].sel(sample=sample_i)
ax.plot([0.55, 1], [0.55, 1], color="lightgray")
ax.scatter(a_sim, b_sim)
ax.set(xlim=(0.55, 1),
ylim=(0.55, 1),
aspect="equal",
xticks=[0.6, 0.8, 1.0],
yticks=[0.6, 0.8, 1.0])
for ax in axes[:,0]:
ax.set_ylabel("b")
for ax in axes[1,:]:
ax.set_xlabel("a")
fig.suptitle("10 posterior simulations of the parameters of the 30 dogs")
```
```{python}

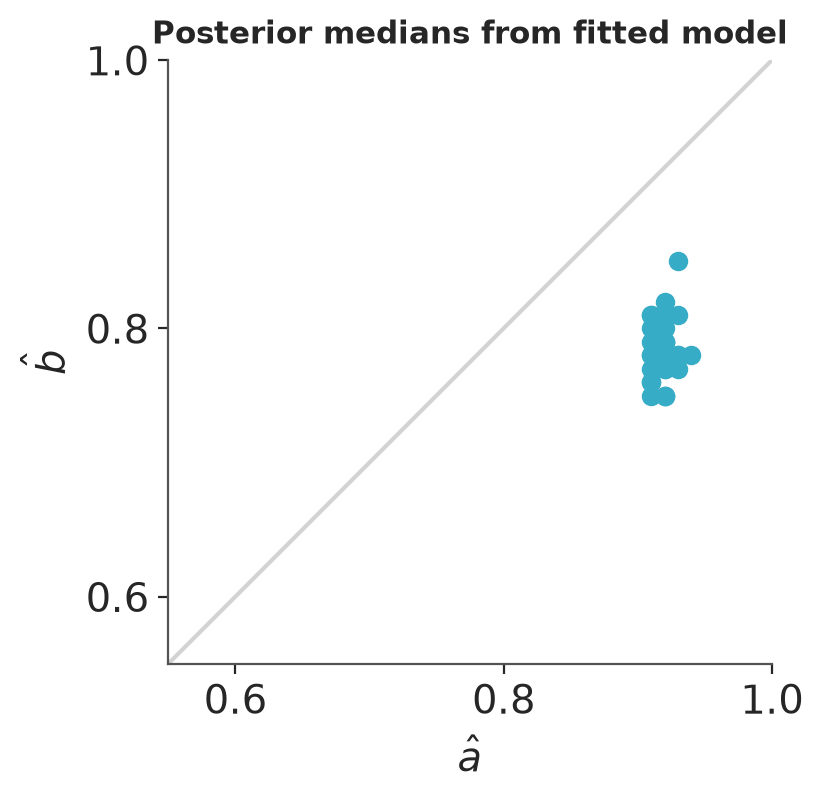

#| label: fig-dogs_point_estimate
ab_median = az.median(dt_5, var_names=["a", "b"])
_, ax = plt.subplots(figsize=(4, 4))
ax.plot([0.55, 1], [0.55, 1], color="lightgray")
ax.scatter(ab_median["a"], ab_median["b"])
ax.set(xlim=(0.55, 1),
ylim=(0.55, 1),
aspect="equal",
xticks=[0.6, 0.8, 1.0],
yticks=[0.6, 0.8, 1.0],
xlabel=r"$\hat{a}$",
ylabel=r"$\hat{b}$")
ax.set_title("Posterior medians from fitted model", fontsize=11);
```
```{python}
new_dogs_mu_logit_ab = np.array([2.4, 1.3])
new_dogs_sigma_ab = np.array([0.32, 0.40])
new_dogs_rho_ab = 0
new_dogs_Sigma_ab = (
np.diag(new_dogs_sigma_ab)
@ np.array([[1, new_dogs_rho_ab], [new_dogs_rho_ab, 1]])
@ np.diag(new_dogs_sigma_ab)
)
J = 30
new_dogs_ab = expit(rng.multivariate_normal(new_dogs_mu_logit_ab, new_dogs_Sigma_ab, size=J))
a = new_dogs_ab[:, 0]
b = new_dogs_ab[:, 1]
T = 25
new_dogs = np.zeros((J, T), dtype=int)
for j in range(J):
prev_shock = 0
prev_avoid = 0
new_dogs[j, 0] = 1
for t in range(1, T):
prev_shock += new_dogs[j, t - 1]
prev_avoid += 1 - new_dogs[j, t - 1]
p = a[j] ** prev_shock * b[j] ** prev_avoid
new_dogs[j, t] = rng.binomial(1, p)
new_dogs_data = {"y": new_dogs, "J": J, "T": T}
```
```{python}
#| label: new_fit_5
#| results: hide
new_fit_5 = dogs_5.sample(data=new_dogs_data, seed=SEED, show_progress=False)
```
```{python}
new_dt_5 = az.from_cmdstanpy(new_fit_5)
az.summary(new_dt_5, var_names=["mu_logit_ab", "sigma_logit_ab", "Omega_logit_ab", "a", "b"])
```
```{python}

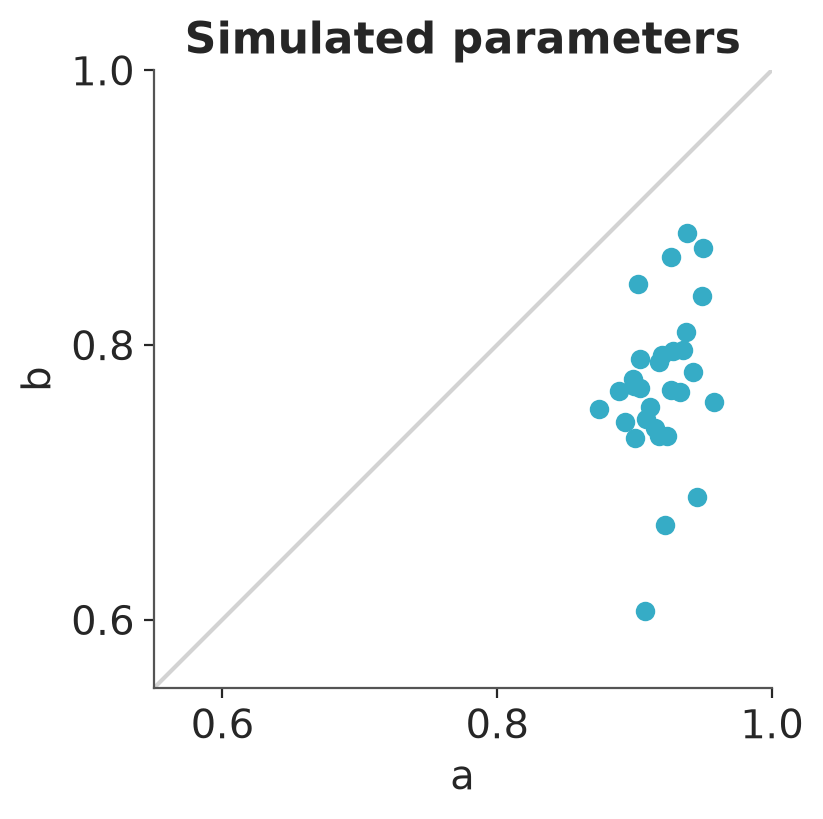

#| label: fig-dogs_parameters
_, ax = plt.subplots(figsize=(4, 4))
ax.plot([0.55, 1], [0.55, 1], color="lightgray")
ax.scatter(a, b)
ax.set(xlim=(0.55, 1),
ylim=(0.55, 1),
xticks=[0.6, 0.8, 1.0],
yticks=[0.6, 0.8, 1.0],
aspect="equal",
xlabel="a",
ylabel="b")
ax.set_title("Simulated parameters");
```
```{python}
#| label: fig-dogs_data
_, ax = plt.subplots(figsize=(5, 4))
plot_dogs(ax, new_dogs)
ax.set_title("Simulated data");
```
```{python}

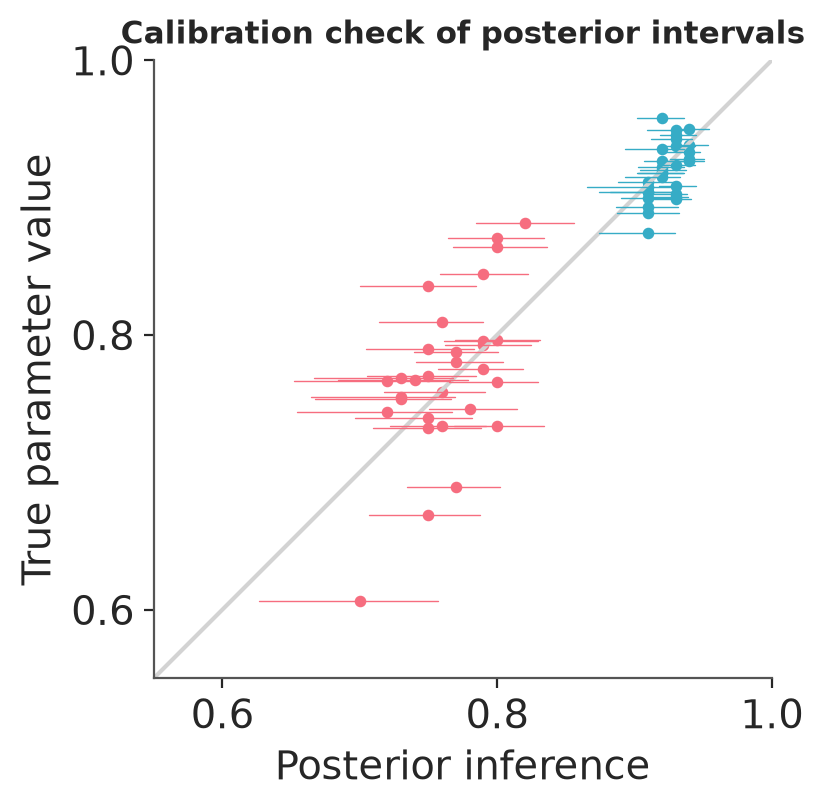

#| label: fig-dogs_calibration
new_dt = az.from_cmdstanpy(new_fit_5)
posterior = az.extract(new_dt, var_names=["a", "b"])
a_post = posterior["a"]
b_post = posterior["b"]
_, ax = plt.subplots(figsize=(4, 4))
ax.set(xlim=(0.55, 1),
ylim=(0.55, 1),
xticks=[0.6, 0.8, 1.0],
yticks=[0.6, 0.8, 1.0],
aspect="equal",
xlabel="Posterior inference",
ylabel="True parameter value")
ax.set_title("Calibration check of posterior intervals", fontsize=11)
ax.plot([0.55, 1], [0.55, 1], color="lightgray")
a_median = az.median(a_post, dim="sample")
quants = a_post.quantile([0.25, 0.75], dim="sample")
ax.scatter(a_median, a, s=10, color="C0")
ax.plot(quants, [a, a], color="C0", lw=0.5)
b_median = az.median(b_post, dim="sample")
quants = b_post.quantile([0.25, 0.75], dim="sample")
ax.scatter(b_median, b, s=10, color="C1")
ax.plot(quants, [b, b], color="C1", lw=0.5);
```
```{python}
J = 300
new_dogs_ab = expit(rng.multivariate_normal(new_dogs_mu_logit_ab, new_dogs_Sigma_ab, size=J))
a = new_dogs_ab[:, 0]
b = new_dogs_ab[:, 1]
T = 25
new_dogs = np.zeros((J, T), dtype=int)
for j in range(J):
prev_shock = 0
prev_avoid = 0
new_dogs[j, 0] = 1
for t in range(1, T):
prev_shock += new_dogs[j, t - 1]
prev_avoid += 1 - new_dogs[j, t - 1]
p = a[j] ** prev_shock * b[j] ** prev_avoid
new_dogs[j, t] = rng.binomial(1, p)
new_dogs_data = {"y": new_dogs, "J": J, "T": T}
```
```{python}
#| label: new_fit_5_300
#| results: hide
new_fit_5 = dogs_5.sample(data=new_dogs_data, seed=SEED, show_progress=False)
```
```{python}
new_dt_5 = az.from_cmdstanpy(new_fit_5)
az.summary(new_dt_5, var_names=["mu_logit_ab", "sigma_logit_ab", "Omega_logit_ab", "a", "b"])
```
```{python}
T = 50
new_dogs = np.zeros((J, T), dtype=int)
for j in range(J):
prev_shock = 0
prev_avoid = 0
new_dogs[j, 0] = 1
for t in range(1, T):
prev_shock += new_dogs[j, t - 1]
prev_avoid += 1 - new_dogs[j, t - 1]
p = a[j] ** prev_shock * b[j] ** prev_avoid
new_dogs[j, t] = rng.binomial(1, p)
new_dogs_data = {"y": new_dogs, "J": J, "T": T}
```
```{python}
#| label: new_fit_5_50
#| results: hide
new_fit_5 = dogs_5.sample(data=new_dogs_data, seed=SEED, show_progress=False)
```
```{python}
new_dt_5 = az.from_cmdstanpy(new_fit_5)
az.summary(new_dt_5, var_names=["mu_logit_ab", "sigma_logit_ab", "Omega_logit_ab", "a", "b"])
```
```{python}

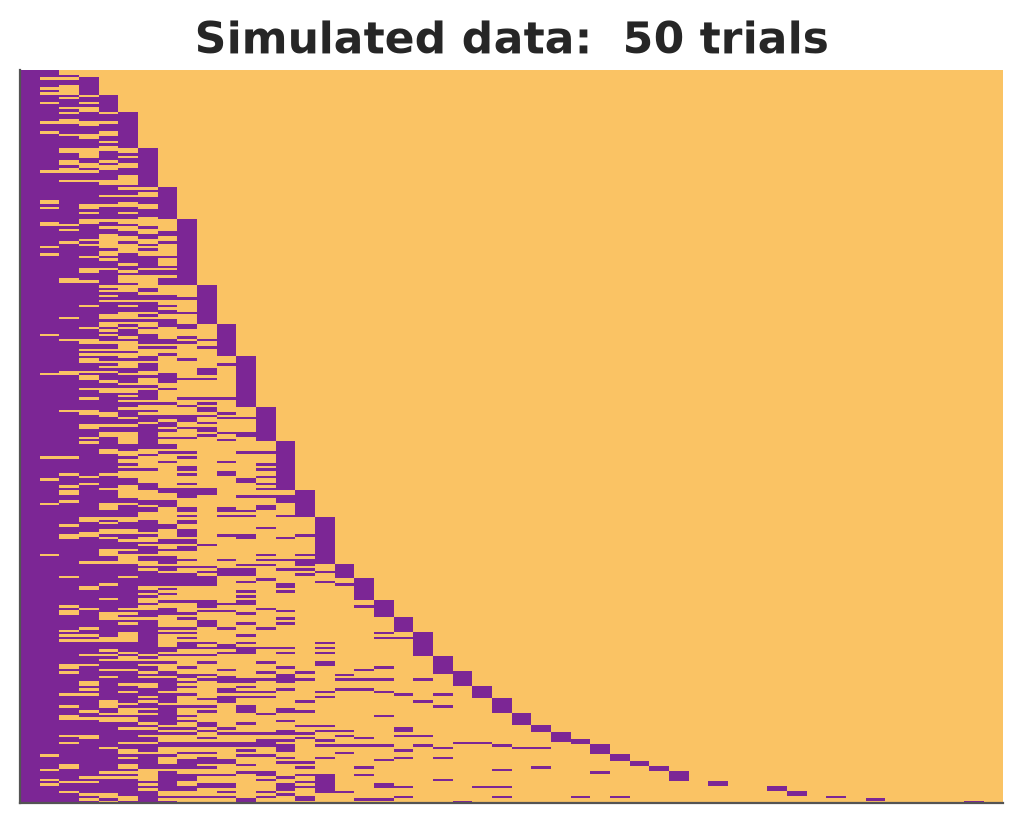

#| label: fig-dogs_data_50
_, ax = plt.subplots(figsize=(5, 4))
plot_dogs(ax, new_dogs)
ax.set_title("Simulated data: 50 trials");
```
```{python}

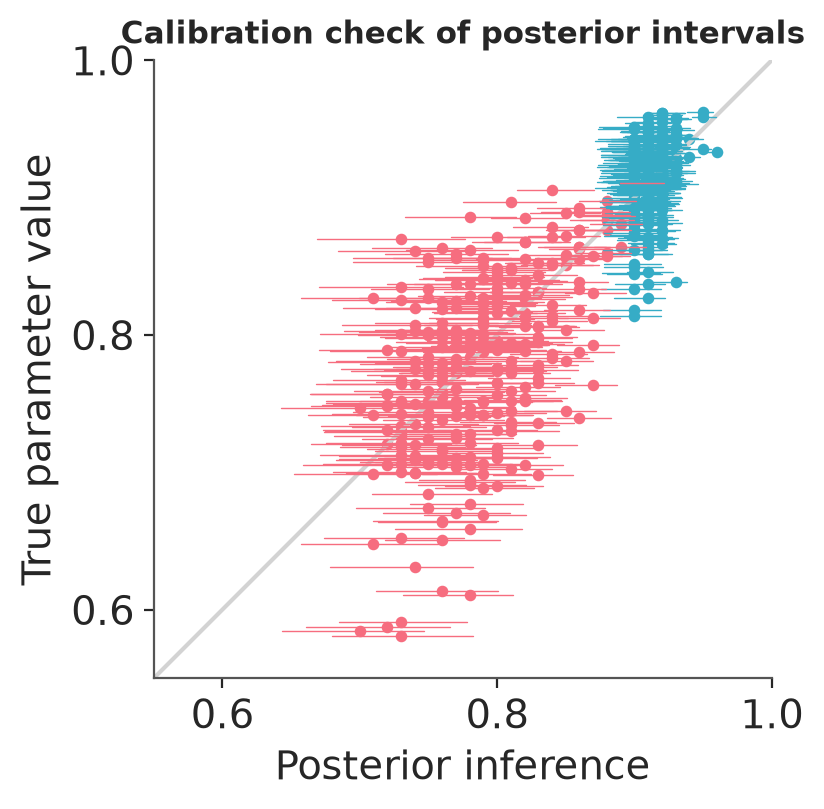

#| label: fig-dogs_calibration_50
new_dt = az.from_cmdstanpy(new_fit_5)
posterior = az.extract(new_dt, var_names=["a", "b"])
a_post = posterior["a"]
b_post = posterior["b"]
_, ax = plt.subplots(figsize=(4, 4))
ax.set(xlim=(0.55, 1),
ylim=(0.55, 1),
xticks=[0.6, 0.8, 1.0],
yticks=[0.6, 0.8, 1.0],
aspect="equal",
xlabel="Posterior inference",
ylabel="True parameter value")
ax.set_title("Calibration check of posterior intervals", fontsize=11)
ax.plot([0.55, 1], [0.55, 1], color="lightgray")
a_median = az.median(a_post, dim="sample")
quants = a_post.quantile([0.25, 0.75], dim="sample")
ax.scatter(a_median, a, s=10, color="C0")
ax.plot(quants, [a, a], color="C0", lw=0.5)
b_median = az.median(b_post, dim="sample")
quants = b_post.quantile([0.25, 0.75], dim="sample")
ax.scatter(b_median, b, s=10, color="C1")
ax.plot(quants, [b, b], color="C1", lw=0.5);
```
