ArviZ.jl Quickstart

Set-up

Here we add the necessary packages for this notebook and load a few we will use throughout.

using ArviZ, Distributions, LinearAlgebra, PyPlot, Random, StanSample, Turing

/home/runner/.julia/conda/3/x86_64/lib/python3.10/site-packages/scipy/__init__.py:146: UserWarning: A NumPy version >=1.17.3 and <1.25.0 is required for this version of SciPy (detected version 1.25.0
  warnings.warn(f"A NumPy version >={np_minversion} and <{np_maxversion}"

# ArviZ ships with style sheets!
ArviZ.use_style("arviz-darkgrid")

Get started with plotting

ArviZ.jl is designed to be used with libraries like Stan, Turing.jl, and Soss.jl but works fine with raw arrays.

rng1 = Random.MersenneTwister(37772);

plot_posterior(randn(rng1, 100_000));

Plotting a dictionary of arrays, ArviZ.jl will interpret each key as the name of a different random variable. Each row of an array is treated as an independent series of draws from the variable, called a chain. Below, we have 10 chains of 50 draws each for four different distributions.

s = (50, 10)
plot_forest((
    normal=randn(rng1, s),
    gumbel=rand(rng1, Gumbel(), s),
    student_t=rand(rng1, TDist(6), s),
    exponential=rand(rng1, Exponential(), s),
),);

Plotting with MCMCChains.jl’s Chains objects produced by Turing.jl

ArviZ is designed to work well with high dimensional, labelled data. Consider the eight schools model, which roughly tries to measure the effectiveness of SAT classes at eight different schools. To show off ArviZ’s labelling, I give the schools the names of a different eight schools.

This model is small enough to write down, is hierarchical, and uses labelling. Additionally, a centered parameterization causes divergences (which are interesting for illustration).

First we create our data and set some sampling parameters.

J = 8
y = [28.0, 8.0, -3.0, 7.0, -1.0, 1.0, 18.0, 12.0]
σ = [15.0, 10.0, 16.0, 11.0, 9.0, 11.0, 10.0, 18.0]
schools = [
    "Choate",
    "Deerfield",
    "Phillips Andover",
    "Phillips Exeter",
    "Hotchkiss",
    "Lawrenceville",
    "St. Paul's",
    "Mt. Hermon",
]
ndraws = 1_000
ndraws_warmup = 1_000
nchains = 4;

Now we write and run the model using Turing:

Turing.@model function model_turing(y, σ, J=length(y))
    μ ~ Normal(0, 5)
    τ ~ truncated(Cauchy(0, 5), 0, Inf)
    θ ~ filldist(Normal(μ, τ), J)
    for i in 1:J
        y[i] ~ Normal(θ[i], σ[i])
    end
end

model_turing (generic function with 3 methods)

rng2 = Random.MersenneTwister(16653);

param_mod_turing = model_turing(y, σ)
sampler = NUTS(ndraws_warmup, 0.8)

turing_chns = Turing.sample(
    rng2, model_turing(y, σ), sampler, MCMCThreads(), ndraws, nchains
);

┌ Info: Found initial step size
└   ϵ = 1.6
┌ Info: Found initial step size
└   ϵ = 0.8
┌ Info: Found initial step size
└   ϵ = 0.4
┌ Info: Found initial step size
└   ϵ = 0.8

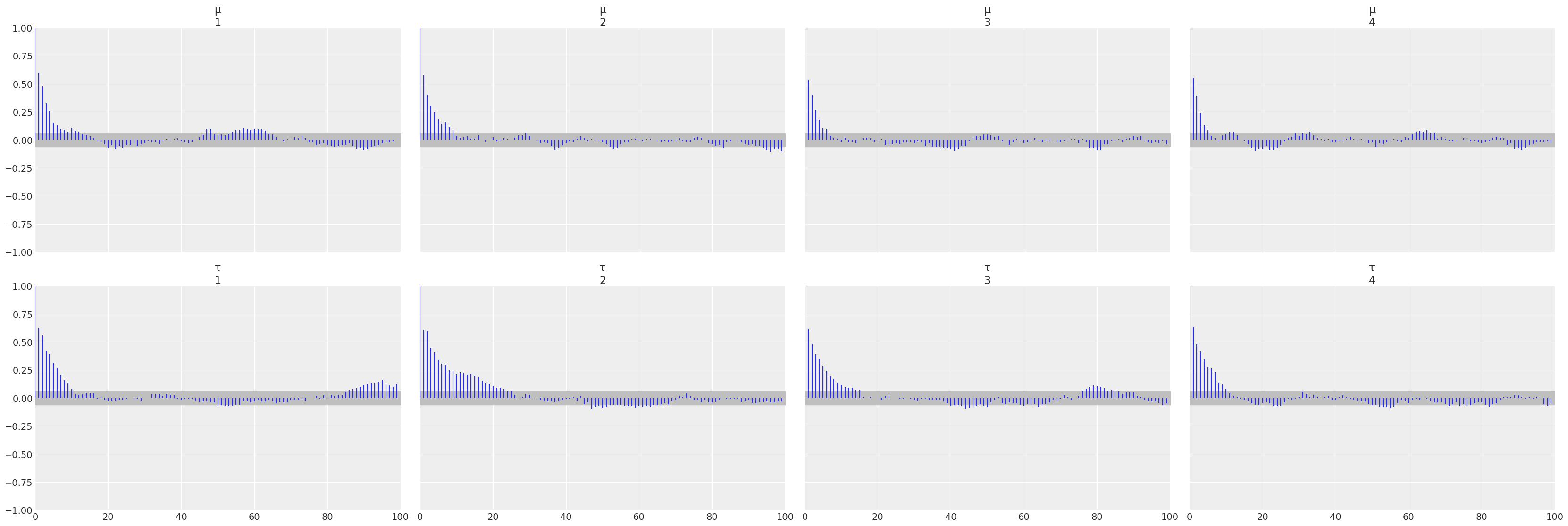

Most ArviZ functions work fine with Chains objects from Turing:

plot_autocorr(turing_chns; var_names=(:μ, :τ));

Convert to InferenceData

For much more powerful querying, analysis and plotting, we can use built-in ArviZ utilities to convert Chains objects to multidimensional data structures with named dimensions and indices. Note that for such dimensions, the information is not contained in Chains, so we need to provide it.

ArviZ is built to work with InferenceData, and the more groups it has access to, the more powerful analyses it can perform.

idata_turing_post = from_mcmcchains(
    turing_chns;
    coords=(; school=schools),
    dims=NamedTuple(k => (:school,) for k in (:y, :σ, :θ)),
    library="Turing",
)

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 3 layers:
  :μ Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :τ Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :θ Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 2 entries:
  "created_at" => "2023-07-06T22:38:11.324"
  "inference_library" => "Turing"

Dataset with dimensions: Dim{:draw}, Dim{:chain}
and 12 layers:
  :energy           Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :n_steps          Int64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :diverging        Bool dims: Dim{:draw}, Dim{:chain} (1000×4)
  :max_energy_error Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :energy_error     Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :is_accept        Bool dims: Dim{:draw}, Dim{:chain} (1000×4)
  :log_density      Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :tree_depth       Int64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :step_size        Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :acceptance_rate  Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :lp               Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :step_size_nom    Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)

with metadata Dict{String, Any} with 2 entries:
  "created_at" => "2023-07-06T22:38:11.208"
  "inference_library" => "Turing"

Each group is a Dataset, a DimensionalData.AbstractDimStack that can be used identically to a DimensionalData.Dimstack. We can view a summary of the dataset.

idata_turing_post.posterior

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 3 layers:
  :μ Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :τ Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :θ Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 2 entries:
  "created_at"        => "2023-07-06T22:38:11.324"
  "inference_library" => "Turing"

Here is a plot of the trace. Note the intelligent labels.

plot_trace(idata_turing_post);

We can also generate summary stats…

summarystats(idata_turing_post)

…and examine the energy distribution of the Hamiltonian sampler.

plot_energy(idata_turing_post);

Additional information in Turing.jl

With a few more steps, we can use Turing to compute additional useful groups to add to the InferenceData.

To sample from the prior, one simply calls sample but with the Prior sampler:

prior = Turing.sample(rng2, param_mod_turing, Prior(), ndraws);

To draw from the prior and posterior predictive distributions we can instantiate a “predictive model”, i.e. a Turing model but with the observations set to missing, and then calling predict on the predictive model and the previously drawn samples:

# Instantiate the predictive model
param_mod_predict = model_turing(similar(y, Missing), σ)
# and then sample!
prior_predictive = Turing.predict(rng2, param_mod_predict, prior)
posterior_predictive = Turing.predict(rng2, param_mod_predict, turing_chns);

And to extract the pointwise log-likelihoods, which is useful if you want to compute metrics such as loo,

log_likelihood = let
    log_likelihood = Turing.pointwise_loglikelihoods(
        param_mod_turing, MCMCChains.get_sections(turing_chns, :parameters)
    )
    # Ensure the ordering of the loglikelihoods matches the ordering of `posterior_predictive`
    ynames = string.(keys(posterior_predictive))
    log_likelihood_y = getindex.(Ref(log_likelihood), ynames)
    (; y=cat(log_likelihood_y...; dims=3))
end;

This can then be included in the from_mcmcchains call from above:

idata_turing = from_mcmcchains(
    turing_chns;
    posterior_predictive,
    log_likelihood,
    prior,
    prior_predictive,
    observed_data=(; y),
    coords=(; school=schools),
    dims=NamedTuple(k => (:school,) for k in (:y, :σ, :θ)),
    library=Turing,
)

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 3 layers:
  :μ Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :τ Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :θ Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:38.105"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :y Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:37.15"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :y Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:37.884"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions: Dim{:draw}, Dim{:chain}
and 12 layers:
  :energy           Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :n_steps          Int64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :diverging        Bool dims: Dim{:draw}, Dim{:chain} (1000×4)
  :max_energy_error Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :energy_error     Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :is_accept        Bool dims: Dim{:draw}, Dim{:chain} (1000×4)
  :log_density      Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :tree_depth       Int64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :step_size        Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :acceptance_rate  Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :lp               Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :step_size_nom    Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:38.104"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 3 layers:
  :μ Float64 dims: Dim{:draw}, Dim{:chain} (1000×1)
  :τ Float64 dims: Dim{:draw}, Dim{:chain} (1000×1)
  :θ Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×1×8)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:39.089"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :y Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×1×8)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:38.755"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions: Dim{:draw}, Dim{:chain}
and 1 layer:
  :lp Float64 dims: Dim{:draw}, Dim{:chain} (1000×1)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:38.943"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Dataset with dimensions:
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :y Float64 dims: Dim{:school} (8)

with metadata Dict{String, Any} with 3 entries:
  "created_at" => "2023-07-06T22:38:39.44"
  "inference_library_version" => "0.24.4"
  "inference_library" => "Turing"

Then we can for example compute the expected leave-one-out (LOO) predictive density, which is an estimate of the out-of-distribution predictive fit of the model:

loo(idata_turing) # higher ELPD is better

PSISLOOResult with estimates
       Estimate    SE
 elpd       -31   1.5
    p       0.9  0.35

and PSISResult with 1000 draws, 4 chains, and 8 parameters
Pareto shape (k) diagnostic values:
                    Count      Min. ESS
 (-Inf, 0.5]  good  5 (62.5%)  723
  (0.5, 0.7]  okay  3 (37.5%)  390

If the model is well-calibrated, i.e. it replicates the true generative process well, the CDF of the pointwise LOO values should be similarly distributed to a uniform distribution. This can be inspected visually:

plot_loo_pit(idata_turing; y=:y, ecdf=true);

Plotting with Stan.jl outputs

StanSample.jl comes with built-in support for producing InferenceData outputs.

Here is the same centered eight schools model in Stan:

schools_code = """
data {
    int<lower=0> J;
    real y[J];
    real<lower=0> sigma[J];
}

parameters {
    real mu;
    real<lower=0> tau;
    real theta[J];
}

model {
    mu ~ normal(0, 5);
    tau ~ cauchy(0, 5);
    theta ~ normal(mu, tau);
    y ~ normal(theta, sigma);
}

generated quantities {
    vector[J] log_lik;
    vector[J] y_hat;
    for (j in 1:J) {
        log_lik[j] = normal_lpdf(y[j] | theta[j], sigma[j]);
        y_hat[j] = normal_rng(theta[j], sigma[j]);
    }
}
"""

schools_data = Dict("J" => J, "y" => y, "sigma" => σ)
idata_stan = mktempdir() do path
    stan_model = SampleModel("schools", schools_code, path)
    _ = stan_sample(
        stan_model;
        data=schools_data,
        num_chains=nchains,
        num_warmups=ndraws_warmup,
        num_samples=ndraws,
        seed=28983,
        summary=false,
    )
    return StanSample.inferencedata(
        stan_model;
        posterior_predictive_var=:y_hat,
        observed_data=(; y),
        log_likelihood_var=:log_lik,
        coords=(; school=schools),
        dims=NamedTuple(
            k => (:school,) for k in (:y, :sigma, :theta, :log_lik, :y_hat)
        ),
    )
end

[ Info: /tmp/jl_qZcpA8/schools.stan updated.

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 3 layers:
  :mu    Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :tau   Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :theta Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 1 entry:
  "created_at" => "2023-07-06T22:39:25.626"

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :y_hat Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 1 entry:
  "created_at" => "2023-07-06T22:39:24.595"

Dataset with dimensions:
  Dim{:draw},
  Dim{:chain},
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :log_lik Float64 dims: Dim{:draw}, Dim{:chain}, Dim{:school} (1000×4×8)

with metadata Dict{String, Any} with 1 entry:
  "created_at" => "2023-07-06T22:39:25.378"

Dataset with dimensions: Dim{:draw}, Dim{:chain}
and 7 layers:
  :tree_depth      Int64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :energy          Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :diverging       Bool dims: Dim{:draw}, Dim{:chain} (1000×4)
  :acceptance_rate Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :n_steps         Int64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :lp              Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)
  :step_size       Float64 dims: Dim{:draw}, Dim{:chain} (1000×4)

with metadata Dict{String, Any} with 1 entry:
  "created_at" => "2023-07-06T22:39:24.951"

Dataset with dimensions:
  Dim{:school} Categorical{String} String[Choate, Deerfield, …, St. Paul's, Mt. Hermon] Unordered
and 1 layer:
  :y Float64 dims: Dim{:school} (8)

with metadata Dict{String, Any} with 1 entry:
  "created_at" => "2023-07-06T22:39:25.789"

plot_density(idata_stan; var_names=(:mu, :tau));

Here is a plot showing where the Hamiltonian sampler had divergences:

plot_pair(
    idata_stan;
    coords=Dict(:school => ["Choate", "Deerfield", "Phillips Andover"]),
    divergences=true,
);

Environment

using Pkg
Pkg.status()

Status `~/work/ArviZ.jl/ArviZ.jl/docs/Project.toml`
  [cbdf2221] AlgebraOfGraphics v0.6.16
  [131c737c] ArviZ v0.9.0-DEV `~/work/ArviZ.jl/ArviZ.jl`
  [13f3f980] CairoMakie v0.10.6
  [992eb4ea] CondaPkg v0.2.18
  [a93c6f00] DataFrames v1.5.0
  [0703355e] DimensionalData v0.24.12
  [31c24e10] Distributions v0.25.98
  [e30172f5] Documenter v0.27.25
⌅ [f6006082] EvoTrees v0.14.11
  [7073ff75] IJulia v1.24.2
  [c7f686f2] MCMCChains v6.0.3
  [be115224] MCMCDiagnosticTools v0.3.4
  [a7f614a8] MLJBase v0.21.11
  [614be32b] MLJIteration v0.5.1
  [438e738f] PyCall v1.96.1
  [d330b81b] PyPlot v2.11.1
  [754583d1] SampleChains v0.5.1
  [c1514b29] StanSample v7.4.1
⌅ [fce5fe82] Turing v0.24.4
  [f43a241f] Downloads v1.6.0
  [37e2e46d] LinearAlgebra
  [10745b16] Statistics v1.9.0
Info Packages marked with ⌅ have new versions available but compatibility constraints restrict them from upgrading. To see why use `status --outdated`

versioninfo()

Julia Version 1.9.2
Commit e4ee485e909 (2023-07-05 09:39 UTC)
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 2 × Intel(R) Xeon(R) Platinum 8272CL CPU @ 2.60GHz
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-14.0.6 (ORCJIT, skylake-avx512)
  Threads: 3 on 2 virtual cores
Environment:
  JULIA_CMDSTAN_HOME = /home/runner/work/ArviZ.jl/ArviZ.jl/.cmdstan//cmdstan-2.25.0/
  JULIA_IMAGE_THREADS = 1
  JULIA_NUM_THREADS = 2
